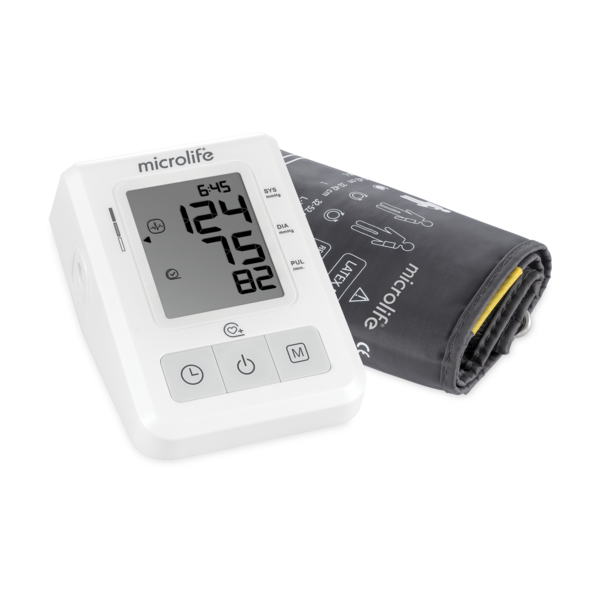

Microlife B2 Basic Upper Arm Blood Pressure Machine

The Microlife entry level model BP B2 Basic provides all important features that you need for measuring blood pressure reliably and accurately: 30 data memory for long-term monitoring of your blood pressure levels, IHB* technology for irregular heartbeat detection which might affect your blood pressure values and the new feature “cuff fit check” ensures that the cuff is correctly placed on your upper arm.

*In case of IHB it is recommended to repeat the measurement. If IHB comes up frequently it is recommended to consult your doctor.

Key Features

• Power source - size AA batteries or Optional adapter DC 6V
• Measuring range:
  20 – 280 mmHg (blood pressure)
  40 – 200 beats per minute (pulse)
• Irregular heartbeat (IHB) detection for early alerts to possible heart irregularities
• Optimal speed and pressure control for comfortable measurements
• Washable soft cuff
• High-quality cuff for most common arm sizes (M-L / 22-42 cm)

What's in the box

1. Microlife BP B2 Basic Blood Pressure Monitor
2. Instructions manual
3. Upper arm cuff 22-42cm
4. Batteries
5. Pouch

How to use

1. Avoid activity, eating or smoking immediately before the
   measurement.
   2. Sit down on a back-supported chair and relax for 5 minutes.
   Keep the feet flat on the floor and do not cross your legs.
   3. Always measure on the same arm (normally left). It is recommended that doctors perform double arm measurements on a patients first visit in order to determine which arm to measure in the future. The arm with the higher blood pressure should be measured.
   4. Remove close-fitting garments from the upper arm. To avoid constriction, shirt sleeves should not be rolled up - they do not interfere with the cuff if they are laid flat.
   5. Always ensure that the correct cuff size is used (marking on the cuff).
   > Fit the cuff closely, but not too tight.
   > Make sure that the cuff is positioned 1-2 cm above the elbow.
   > The artery mark on the cuff (ca. 3 cm long bar) must lie over the artery which runs down the inner side of the arm.
   > Support your arm so it is relaxed.
   > Ensure that the cuff is at the same height as your heart.
   6. Press the ON/OFF button 1 to start the measurement.
   7. The cuff will now pump up automatically. Relax, do not move and do not tense your arm muscles until the measurement result is displayed. Breathe normally and do not talk.
   8. When the correct pressure is reached, the pumping stops and the pressure falls gradually. If the required pressure was not reached, the device will automatically pump some more air into the cuff.
   9. During the measurement, the pulse indicator AM flashes in the display.
   10.The result, comprising the systolic 8 and the diastolic 9
   blood pressure and the pulse rate AT is displayed.
   11.When the device has finished measuring, remove the cuff.
   12.Switch off the device. (The monitor does switch off automatically after approx. 1 min.)
2.

   Detection of irregular heartbeat

   Irregular heartbeat (IHB) detection for early alerts to possible heart irregularities


   Gentle+

   Optimal speed and pressure control for comfortable measurements


   Washable soft cuff

   High-quality cuff for most common arm sizes (M-L / 22-42 cm)






   30 data memory

   And average display of all stored measurements



   Cuff fit check

   Shows before each measurement, if the cuff has correctly been attached on your upper arm



   Easy blood pressure classification

   An indicator shows how your result is classified according to international hypertension guidelines
